Light Weight 24V 5A Portable Charger For Automotive Batteries With 3 - Pin XLR Or Clips Connector

Light Weight 24V 5A Portable Charger For Automotive Batteries With 3 - Pin XLR Or Clips Connector

Brief Description:

Portable battery charger 24 volts 5 amps with aluminum housing and small size. Input with worldwide 110 - 240 Vac. Max charigng voltage is 29.2V or 29.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 24V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.

Features

1) Optional charging methods: Lithium or lead acid batteries.

2) Advanced high frequency switching mode power supply technology.

3) DC output isolated from AC input.

4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

5) Charging parameters are insensitive to the AC input line voltage variations.

6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

8) Aluminum casing, light weight, portable.

9) 100% full load burn-in test.

10) 2 years warranty.

Technical Specs.:

1) Dimensions(LxWxH): 155 x 90 x 50 MM

2) Net weight: 0.9 KG

3) Max charging voltage(CV): 29.2 / 29.4 volt

4) Floating voltage: customized

5) Max output current (CC): 5 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

small battery charger

li ion battery charger

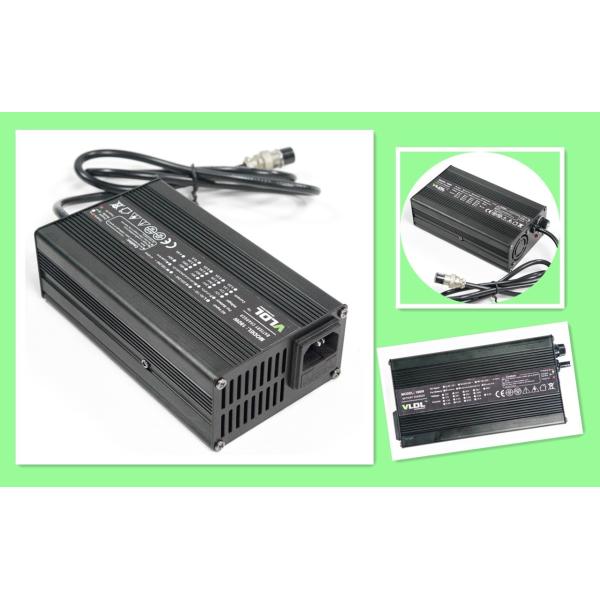

Light Weight 24V 5A Portable Charger For Automotive Batteries With 3 - Pin XLR Or Clips Connector Images
